Drawing Tools Subs or Functions with Demo

[PhilOfPerth]

Newly revised PieSlice and testing code, works for transparent colors with more dependable Fills.

Code: (Select All)

Option _Explicit
_Title "Arc & PieSlice (Filled) testing, escape for 2nd test" ' bplus rev 2024-10-15
Randomize Timer

Screen _NewImage(800, 600, 32)
_ScreenMove 250, 60
Dim As Single xc, yc, a, x1, y1, s, e, r, degree10, at, xoff, yoff, radius, x, y, cnt
Dim sa$
Dim cc As _Unsigned Long
degree10 = _Pi(2 / 36)
xc = 400: yc = 300
r = 250
Do
    Cls
    cc = _RGB32(Rnd * 155 + 100, Rnd * 255, Rnd * 255, Rnd * 200 + 55)
    s = Rnd * _Pi(2): e = Rnd * _Pi(2)
    For a = 0 To _Pi(1.999) Step degree10

        ' Regular East = 0 calcs
        x1 = xc + r * Cos(a)
        y1 = yc + r * Sin(a)
        at = Int(_R2D(_Atan2(y1 - yc, x1 - xc)) + .0001)
        If at < 0 Then at = at + 360
        sa$ = _Trim$(Str$(at))
        xoff = _PrintWidth(sa$) / 2
        yoff = 16 / 2
        _PrintString (x1 - xoff, y1 - yoff), sa$
    Next
    radius = Rnd * 100 + 100
    Arc 400, 300, radius, s, e, cc
    PieSlice 400, 300, radius - 10, s, e, cc, 1 ' test all fills !!!!
    Print "Start Angle:"; Int(_R2D(s)) ' covert to degrees
    Print "End Angle:"; Int(_R2D(e))
    Print: Print "zzz, Press any...."
    Sleep
Loop Until _KeyDown(27)
Cls
_KeyClear
_Title "Failure if the Screen floods by a bad Paint Job, any ky quits."
Do
    cc = _RGB32(Rnd * 155 + 100, Rnd * 255, Rnd * 255, Rnd * 200 + 55)
    s = Rnd * _Pi(2): e = Rnd * _Pi(2)
    radius = Rnd * 100 + 10
    x = Rnd * _Width: y = Rnd * _Height
    Arc x, y, radius, s, e, cc
    PieSlice x, y, radius - 5, s, e, cc, 1 ' test all fills !!!!
    _Limit 1
    cnt = cnt + 1
    If cnt Mod 50 = 49 Then Cls
Loop While InKey$ = ""

Sub Arc (CX, CY, R, RAStart, RAStop, C~&) ' rev 2024-10-14
    'CX, CY Center Circle point, R = radius, C~& = color
    ' RaStart and RAStop are Radian angles,
    ' RAStart is first angle clockwise from due East = 0 Radians
    ' Arc will start drawing there and go clockwise until raEnd is reached
    'note in Basic: degrees start due East = 0 and go clockwise

    Dim raEnd, stepper, a
    If RAStop < RAStart Then raEnd = RAStop + _Pi(2) Else raEnd = RAStop
    stepper = 1 / R
    For a = RAStart To raEnd Step stepper
        If (a - RAStart) < stepper Then
            PSet (CX + R * Cos(a), CY + R * Sin(a)), C~&
        Else
            Line -(CX + R * Cos(a), CY + R * Sin(a)), C~&
        End If
    Next
End Sub

Sub PieSlice (XC, YC, R, RStart, REnd, C As _Unsigned Long, FillTF) 'rev 2024-10-15
    ' XC, YC Center for arc circle with radius R
    ' RStart is the Radian Start Angle, use _D2R for conversion from Degrees to Radians
    ' REnd is Radian End Angle
    ' Arc will start at rStart and go clockwise around to rEnd Radians

    Dim rStop, rMid, stepper, a, x, y
    Dim bc As _Unsigned Long
    bc = _RGB32(_Red32(C), _Green32(C), _Blue32(C))
    If REnd < RStart Then rStop = REnd + _Pi(2) Else rStop = REnd
    rMid = rStop - RStart
    Line (XC, YC)-(XC + R * Cos(RStart), YC + R * Sin(RStart)), bc
    Line (XC, YC)-(XC + R * Cos(rStop), YC + R * Sin(rStop)), bc
    stepper = 1 / R ' the bigger the radius the smaller  the steps
    For a = RStart To rStop Step stepper
        x = XC + R * Cos(a)
        y = YC + R * Sin(a)
        If a > RStart Then Line -(x, y), bc Else PSet (x, y), bc
    Next
    If FillTF Then Paint (XC + R / 2 * Cos(RStart + rMid / 2), YC + R / 2 * Sin(RStart + rMid / 2)), C, bc
End Sub

Wow, brilliant!! Great job!

[bplus]

Roll Image Down (opens) or Up (closes)

Should fit any image inside a given box on screen and maintain the images width : height ratio.

Code: (Select All)

_Title "Roll Open and Close an Image" ' b+ 2024-10-29

Const SW = 1200, SH = 700
Screen _NewImage(SW, SH, 32): _ScreenMove 0, 0
i = _LoadImage("New PieSlice.PNG")
Do
    BoxRollDown 10, 10, _Width - 20, _Height - 20, i, 1
    _PrintString (500, _Height - 40), "Press any to roll up."
    Sleep
    Cls
    BoxRollDown 10, 10, _Width - 20, _Height - 20, i, 0
    _PrintString (500, _Height - 40), "Press any to roll down."
    Sleep
    Cls
Loop

Sub BoxRollDown (x, y, w, h, i, DownTF)
    ' not likely the box w, h is same scale as image w, h
    ' so what fits what?
    saveAD = _AutoDisplay
    iw = _Width(i)
    ih = _Height(i)
    wR = w / iw
    hR = h / ih
    If wR < hR Then ' use w scale to accommodate smallest change
        scale = w / iw
        xo = 0: yo = (h - ih * scale) / 2
    Else ' use h to accomadate smallest change
        scale = h / ih
        xo = (w - iw * scale) / 2: yo = 0
    End If
    ' mult scale to fit box
    Line (x, y)-Step(w, h), , B ' draw box
    Line (x + xo, y + yo)-Step(iw * scale, ih * scale), &HFFFFFF00, B ' fit image inside
    If DownTF Then
        For yy = 0 To ih
            _PutImage (x + xo, y + yo)-Step(iw * scale, yy * scale), i, 0, (0, 0)-(iw, yy)
            _Display
            _Limit 120
        Next
    Else
        For yy = ih To 0 Step -1
            Line (x + xo, y + yo)-Step(iw * scale, ih * scale), &HFF000000, BF
            Line (x + xo, y + yo)-Step(iw * scale, ih * scale), &HFFFFFF00, B ' fit image inside
            _PutImage (x + xo, y + yo)-Step(iw * scale, yy * scale), i, 0, (0, 0)-(iw, yy)
            _Display
            _Limit 120
        Next
    End If
    If saveAD Then _AutoDisplay
End Sub

"Preserving width : height ratio", and thereby NOT distorting the images circles or text beyond recognition.

Demo image is in zip

[bplus]

Text and Text8

Yeah these text subs might come in handy for labeling or jazzing up your print without loading a Font.

Text uses standard 8X16 chars in QB64 and Text8 uses the tiny _Font 8 square block characters.

Here I've updated them since Dav pointed to something and then I discovered background color was being changed. Hopefully all fixed and fit now.

Code: (Select All)

_Title "Text and Text8 tests" ' b+ 2024-11-01

Screen _NewImage(1024, 600, 32): _ScreenMove 0, 0
Color &HFFDDDDFF, &HFF000066: Cls
size = 64
For i = 1 To 20
    Text8 20, row, size, &HFF00FF88, "This is line" + Str$(i)
    row = row + size + 1
    size = 64 * .9 ^ i
Next
row = _Height - 64 - 8
size = 64
For i = 20 To 1 Step -1
    t$ = "This is line" + Str$(i)
    Text _Width - Len(t$) * size / 2 - 20, row, size, &HFFFF8800, "This is line" + Str$(i)
    size = 64 * .9 ^ (21 - i)
    row = row - size - 1
Next
_PrintString (350, _Height - 20), "OK tests done."
Sleep

Sub Text8 (x, y, textHeight, K As _Unsigned Long, txt$)
    Dim fg As _Unsigned Long, bg As _Unsigned Long, cur&, i&, f&
    fg = _DefaultColor: bg = _BackgroundColor: cur& = _Dest: f& = _Font
    i& = _NewImage(8 * Len(txt$), 8, 32)
    _Dest i&: _Font 8: Color K, _RGBA32(0, 0, 0, 0): _PrintString (0, 0), txt$
    _PutImage (x, y)-Step(Len(txt$) * textHeight, textHeight), i&, cur&
    Color fg, bg: _FreeImage i&: _Dest cur&: _Font f&
End Sub

Sub Text (x, y, textHeight, K As _Unsigned Long, txt$)
    Dim fg As _Unsigned Long, bg As _Unsigned Long, cur&, i&
    fg = _DefaultColor: bg = _BackgroundColor: cur& = _Dest
    i& = _NewImage(8 * Len(txt$), 16, 32)
    _Dest i&: Color K, _RGBA32(0, 0, 0, 0): _PrintString (0, 0), txt$
    _PutImage (x, y)-Step(Len(txt$) * textHeight / 2, textHeight), i&, cur&
    Color fg, bg: _FreeImage i&: _Dest cur&
End Sub

Thanks to Phil and Steve for getting me to haul out Text and look it over again.


[bplus]

FatPALline

This is a way to draw lines from a Point x, y at an angle for a given length, fatness and color.

I used it to boldly present the Maze lines in Flipping Hex Maze code. Also included is FatLine which needs the Circle Fill sub FCirc. Here is the demo:

Code: (Select All)

_Title "FatPALline test" 'b+ 2024-11-01

Screen _NewImage(801, 590, 32): _ScreenMove 240, 60
Type BoardType
    As Single x, y, flipped, flipping, a
End Type
Dim Shared ubX, ubY
ubX = 18: ubY = 16
Dim Shared b(ubX, ubY) As BoardType
Dim Shared cellR, xspacing!, yspacing!
cellR = 25
xspacing! = 2 * cellR * Cos(_D2R(30)): yspacing! = cellR * (1 + Sin(_D2R(30)))
Dim xoffset!
Color &HFF000000, &HFFAAAAFF
Do
    m = (m + 1) Mod ubX
    Cls
    For y = 0 To ubY
        If y Mod 2 = 0 Then xoffset! = .5 * xspacing! Else xoffset! = 0
        For x = 0 To ubX
            b(x, y).x = x * xspacing! + xoffset! + .5 * xspacing! - 20
            b(x, y).y = y * yspacing! + .5 * yspacing! - 20
            If Rnd < .002 Then b(x, y).flipping = 1
            showCell x, y
        Next
    Next
    _Display
    _Limit 60
Loop

Sub showCell (c, r)
    If b(c, r).flipping Then b(c, r).a = b(c, r).a + _Pi(1 / 90)
    If b(c, r).a >= _Pi(1 / 3) Then
        b(c, r).flipping = 0: b(c, r).a = 0
        If b(c, r).flipped Then b(c, r).flipped = 0 Else b(c, r).flipped = 1
    End If
    If b(c, r).flipped Then
        For a = _Pi(1 / 6) To _Pi(2) Step _Pi(2 / 3)
            FatPALline b(c, r).x, b(c, r).y, a + b(c, r).a, cellR, 4, &HFF000000
        Next
    Else
        For a = _Pi(.5) To _Pi(2) Step _Pi(2 / 3)
            FatPALline b(c, r).x, b(c, r).y, a + b(c, r).a, cellR, 4, &HFF000000
        Next
    End If
End Sub

'    ++++++++++++++++++ Featured Subroutines for Drawing +++++++++++++++++++++++

' needs Fcirc because needs FatLine
Sub FatPALline (BaseX, BaseY, RAngle, Lngth, Fat, K As _Unsigned Long) ' point angle length line
    Dim x2, y2
    x2 = BaseX + Lngth * Cos(RAngle)
    y2 = BaseY + Lngth * Sin(RAngle)
    FatLine BaseX, BaseY, x2, y2, Fat, K
End Sub

' 2023-09-27 000Test/Graphics/FatLine test and demo
Sub FatLine (x, y, x2, y2, wide As Integer, c As _Unsigned Long)
    ' this sub needs fcirc
    Dim dx, dy, distance, r
    dx = x2 - x
    dy = y2 - y
    distance = _Hypot(dx, dy)
    r = Int(wide / 2)
    If distance Then '  bullet proof
        dx = dx / distance
        dy = dy / distance
        If r = 0 Then
            Line (x, y)-(x2, y2), c
        Else
            Dim i As Long
            While i <= distance
                FCirc x + i * dx, y + i * dy, r, c
                i = i + 1
            Wend
        End If
    Else
        If r = 0 Then ' bullet proof
            PSet (x, y), c
        Else
            FCirc x, y, r, c
        End If
    End If
End Sub

Sub FCirc (CX As Long, CY As Long, R As Long, C As _Unsigned Long)
    Dim Radius As Long, RadiusError As Long
    Dim X As Long, Y As Long
    Radius = Abs(R): RadiusError = -Radius: X = Radius: Y = 0
    If Radius = 0 Then PSet (CX, CY), C: Exit Sub
    Line (CX - X, CY)-(CX + X, CY), C, BF
    While X > Y
        RadiusError = RadiusError + Y * 2 + 1
        If RadiusError >= 0 Then
            If X <> Y + 1 Then
                Line (CX - Y, CY - X)-(CX + Y, CY - X), C, BF
                Line (CX - Y, CY + X)-(CX + Y, CY + X), C, BF
            End If
            X = X - 1
            RadiusError = RadiusError - X * 2
        End If
        Y = Y + 1
        Line (CX - X, CY - Y)-(CX + X, CY - Y), C, BF
        Line (CX - X, CY + Y)-(CX + X, CY + Y), C, BF
    Wend
End Sub

Maze code Before FatPALline:


and after:


[bplus]

Vince Image to Sphere fix by bplus

Code: (Select All)

_Title "Vince sphere hold mouse for grid then drag mouse to rotate, wheel to zoom." 'bplus mod vince code 2025-02-09
DefDbl A-Z
Dim Shared pi, p, q, uu, vv

zoom = 200

sw = 800
sh = 600

Screen _NewImage(sw, sh, 32)

'img = _LoadImage("Worldmap.png")
img = _LoadImage("bluemarble_small.png")
w = _Width(img)
h = _Height(img)

pi = 4 * Atn(1)
du = 2 * pi / 24
dv = pi / 14

vv = -pi / 6

drag = 0

_Source img
_Dest 0


Do
    oz = zoom
    Do
        mx = _MouseX
        my = _MouseY
        mb = _MouseButton(1)
        zoom = zoom - 10 * _MouseWheel
    Loop While _MouseInput
    Cls

    'uu = uu + 0.01
    'vv = vv + 0.01


    If mb And drag = 1 Then
        uu = (mx - omx) * pi / sh ' from -mx
        vv = (my - omy) * pi / sh
    End If

    If mb And drag = 0 Then
        omx = mx
        omy = my
        drag = 1
    End If

    If mb = 0 And drag = 1 Then
        drag = 0
    End If

    For v = -pi / 2 To pi / 2 - .5 / zoom Step 1 / zoom '3/zoom    ' bplus fix
        For u = 0 To 2 * pi - .5 / zoom Step 1 / zoom ' 3/zoom    ' bplus fix
            r = Cos(v)
            z = Sin(v)
            x = r * Cos(u)
            y = r * Sin(u)

            xx = x
            yy = y
            zz = z

            rotz x, y, z, uu
            rotx x, y, z, vv

            sx = 0
            sy = -1
            sz = 0

            proj xx, yy, zz
            pp = sw / 2 + zoom * p
            qq = sh / 2 - zoom * q
            If pp > 0 And pp < sw And qq > 0 And qq < sh Then

                If (x * sx + y * sy + z * sz) < 0 Then

                    Dim c As _Unsigned Long
                    cx = (w * u / (2 * pi)) Mod w
                    cy = (h - h * (v + pi / 2) / pi) Mod h
                    c = Point(cx, cy)

                    PSet (sw / 2 - zoom * p, sh / 2 - zoom * q), c ' bplus fix  +zoom in x
                End If
            End If

        Next
    Next


    If drag Or (zoom <> oz) Then
        For v = 0 To 2 * pi Step dv
            For u = 0 To 2 * pi Step du

                r = Cos(v)
                z = Sin(v)
                x = r * Cos(u)
                y = r * Sin(u)

                rotz x, y, z, uu
                rotx x, y, z, vv

                sx = 0
                sy = -1
                sz = 0

                Color _RGB(100, 100, 100)
                If (x * sx + y * sy + z * sz) < 0 Then
                    r = Cos(v)
                    proj r * Cos(u), r * Sin(u), Sin(v)
                    PSet (sw / 2 + zoom * p, sh / 2 - zoom * q)

                    proj r * Cos(u + du), r * Sin(u + du), Sin(v)
                    Line -(sw / 2 + zoom * p, sh / 2 - zoom * q)

                    r = Cos(v + dv)
                    proj r * Cos(u + du), r * Sin(u + du), Sin(v + dv)
                    Line -(sw / 2 + zoom * p, sh / 2 - zoom * q)

                    proj r * Cos(u), r * Sin(u), Sin(v + dv)
                    Line -(sw / 2 + zoom * p, sh / 2 - zoom * q)

                    r = Cos(v)
                    proj r * Cos(u), r * Sin(u), Sin(v)
                    Line -(sw / 2 + zoom * p, sh / 2 - zoom * q)
                End If

            Next
        Next
    End If

    _Limit 30
    _Display
Loop Until _KeyHit = 27
Sleep
System

Sub proj (x, y, z)
    'p = x + 0.707*y
    'q = z + 0.707*y

    rotz x, y, z, uu
    rotx x, y, z, vv


    d = 10
    p = x * d / (10 + y)
    q = z * d / (10 + y)
End Sub

Sub rotx (x, y, z, a)
    xx = x
    yy = y * Cos(a) - z * Sin(a)
    zz = y * Sin(a) + z * Cos(a)

    x = xx
    y = yy
    z = zz
End Sub

Sub roty (x, y, z, a)
    xx = x * Cos(a) + z * Sin(a)
    yy = y
    zz = -x * Sin(a) + z * Cos(a)

    x = xx
    y = yy
    z = zz
End Sub

Sub rotz (x, y, z, a)
    xx = x * Cos(a) - y * Sin(a)
    yy = x * Sin(a) + y * Cos(a)
    zz = z

    x = xx
    y = yy
    z = zz
End Sub

Using bluemarble_small.png (zip file)



[bplus]

Outlining an Image

Code: (Select All)

_Title "Outline Image:  a few SLEEP steps press any..." 'b+ update OutLine Image 2025-02-13
' original code was from 2020-10-28 when Dav was working on coloring app around Halloween.
' Attempt at making a coloring book outlines.
' Results: well maybe this will help layout your masterpiece :)

' The last image is black outlines with shading or grey level hints

DefLng A-Z
Dim Shared xmax, ymax
iFile$ = _OpenFileDialog$("Select an Image to Outline", _CWD$, "*.png|*.jpg", "Image Files")
If iFile$ <> "" Then
    img = _LoadImage(iFile$, 32)
    xmax = _Width(img&)
    ymax = _Height(img&)
    Screen _NewImage(xmax, ymax, 32)
    _Delay .25
    _ScreenMove _Middle
    Dim gs(xmax, ymax), gs2(xmax, ymax)
    _PutImage , img
    nRound = 64 'this rounds to 4 shades of gray  <<< fiddle with this number dividing 256 for a shade grade
    For y = 0 To ymax - 1
        For x = 0 To xmax - 1
            c~& = Point(x, y)
            r = _Red32(c~&)
            g = _Green32(c~&)
            b = _Blue32(c~&)
            gs(x, y) = Int(((r + g + b) / 3) / nRound) * nRound 'round the grey
        Next
    Next
    Sleep
    Color , &HFFFFFFFF: Cls
    For y = 0 To ymax - 1
        For x = 0 To xmax - 1
            PSet (x, y), _RGB32(gs(x, y), gs(x, y), gs(x, y), 90)
        Next
    Next

    Sleep
    Color , &HFFFFFFFF: Cls
    For y = 0 To ymax - 1
        For x = 0 To xmax - 1
            If gs(x, y) <> gs(x + 1, y) Then PSet (x, y), &HFF000000: gs2(x, y) = 1
        Next
    Next
    For x = 0 To xmax - 1
        For y = 0 To ymax - 1
            If gs(x, y) <> gs(x, y + 1) Then PSet (x, y), &HFF000000: gs2(x, y) = 1
        Next
    Next

    Sleep

    ' adding back in the shades of gray
    'Color , &HFFFFFFFF: Cls
    'For x = 0 To xmax - 1
    '    For y = 0 To ymax - 1
    '        If gs2(x, y) Then PSet (x, y), &HFF000000
    '    Next
    'Next

    'For y = 0 To ymax - 1
    '    For x = 0 To xmax - 1
    '        PSet (x, y), _RGB32(gs(x, y), gs(x, y), gs(x, y), 90)
    '    Next
    'Next
End If

Sample image:


It is first grayscaled to this:


Sample output:


And if we add grayscaled back:


[bplus]

MidInk~& Function

Blend color 2 into color 1 by a fraction, usually it's the fractional distance of color 2 center or edge to color 1 center or edge.

Sometime the most handy routines are the simplest

Code: (Select All)

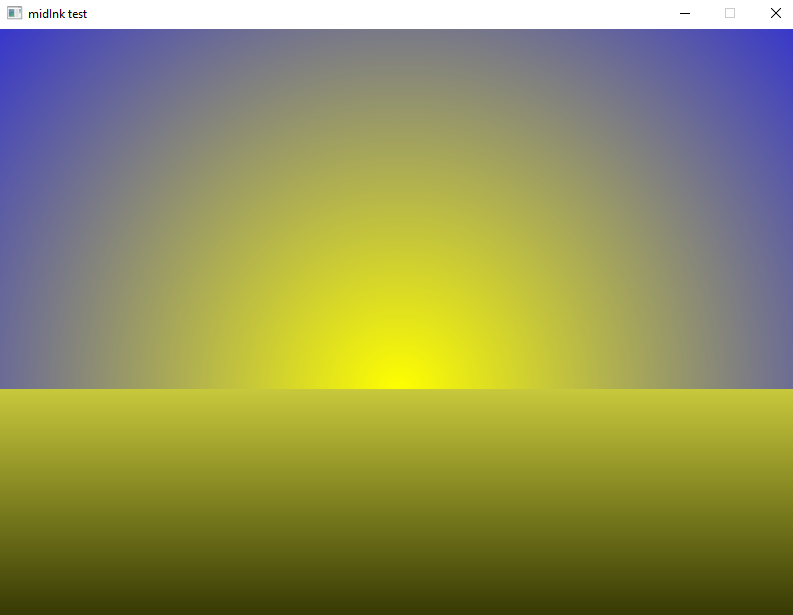

_Title "midInk test" 'B+ 2019-04-18 remake 2025-04-30

Const xmax = 800
Const ymax = 600
Screen _NewImage(xmax, ymax, 32)
_ScreenMove 250, 60

horizon% = Int(ymax * .6)
For i = 550 To 0 Step -1 '                      the sun
    FC3 400, horizon%, i, midInk~&(255, 255, 0, 50, 50, 208, i / 550)
Next

For i = horizon% To ymax '              the land
    Line (0, i)-(xmax, i), midInk~&(200, 200, 60, 45, 48, 0, (i - horizon%) / (ymax - horizon%))
Next
Sleep

' blend 2 colors according to fractional distance of 2nd to first color
Function midInk~& (r1%, g1%, b1%, r2%, g2%, b2%, fr##)
    midInk~& = _RGB32(r1% + (r2% - r1%) * fr##, g1% + (g2% - g1%) * fr##, b1% + (b2% - b1%) * fr##)
End Function

Sub FC3 (cx As Long, cy As Long, r As Long, clr~&) ' fill circle #3 mod
    Dim As Long r2, x, y ' for Option _Explicit
    If r < 1 Then Exit Sub
    Line (cx - r, cy)-(cx + r, cy), clr~&, BF
    r2 = r * r
    Do
        y = y + 1
        x = Sqr(r2 - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), clr~&, BF
        Line (cx - x, cy - y)-(cx + x, cy - y), clr~&, BF
    Loop Until y = r
End Sub



[bplus]

Here's a try at a Rainbow:

Code: (Select All)

_Title "Rainbow test" ' b+ 2025-04-30
Screen _NewImage(800, 600, 32)
_ScreenMove 250, 60
Const xmax = 800
Const ymax = 600

horizon% = Int(ymax * .6)
For i = 550 To 0 Step -1 '                      the sun
    FC3 400, horizon%, i, midInk~&(255, 255, 0, 50, 50, 208, i / 550)
Next

For i = horizon% To ymax '              the land
    Line (0, i)-(xmax, i), midInk~&(200, 200, 60, 45, 48, 0, (i - horizon%) / (ymax - horizon%))
Next

For r = 450 To 350 Step -.25
    drawArc 400, horizon% + 50, r, _Pi, _Pi, rainbow~&((r - 350) / 100, 40)
Next
Sleep

' blend 2 colors according to fractional distance of 2nd to first color
Function midInk~& (r1%, g1%, b1%, r2%, g2%, b2%, fr##)
    midInk~& = _RGB32(r1% + (r2% - r1%) * fr##, g1% + (g2% - g1%) * fr##, b1% + (b2% - b1%) * fr##)
End Function

Sub FC3 (cx As Long, cy As Long, r As Long, clr~&) ' fill circle #3 mod
    Dim As Long r2, x, y ' for Option _Explicit
    If r < 1 Then Exit Sub
    Line (cx - r, cy)-(cx + r, cy), clr~&, BF
    r2 = r * r
    Do
        y = y + 1
        x = Sqr(r2 - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), clr~&, BF
        Line (cx - x, cy - y)-(cx + x, cy - y), clr~&, BF
    Loop Until y = r
End Sub

Function rainbow~& (fraction, alpha)
    radians = fraction * 2 * _Pi
    b = Sin(radians) * 127 + 128
    g = Sin(radians - 2 / 3 * _Pi) * 127 + 128
    r = Sin(radians + 2 / 3 * _Pi) * 127 + 128
    rainbow~& = _RGB32(r, g, b, alpha)
End Function

Sub drawArc (xc, yc, radius, rStart, rMeasure, colr As _Unsigned Long)
    ' xc, yc Center for arc circle
    ' rStart is the Radian Start Angle, use _D2R for conversion from Degrees to Radians
    ' rMeasure is the measure of Arc in Radain units, use _D2R for conversion from Degrees to Radians
    ' Arc will start at rStart and go clockwise around for rMeasure Radians

    Dim rEnd, stepper, a, x, y

    rEnd = rStart + rMeasure
    stepper = 1 / radius ' the bigger the radius the smaller  the steps
    For a = rStart To rEnd Step stepper
        x = xc + radius * Cos(a)
        y = yc + radius * Sin(a)
        If a > rStart Then Line -(x, y), colr Else PSet (x, y), colr
    Next
End Sub

Update: added an Alpha setting to the Rainbow~&(fraction) coloring Function.

[bplus]

OK a better? Rainbow with Modified MidInk~& for Alpha control and Modified ROY G BIV adding a much needed Cyan after Green and before Blue.

Code: (Select All)

_Title "Rainbow Test 2 Modified MidInk and ROY G BIV" ' b+ 2025-05-03 ROY G Cyan BIV with modified MidInk~&
Screen _NewImage(800, 600, 32)
_ScreenMove 250, 60
Const xmax = 800
Const ymax = 600

horizon% = Int(ymax * .6)
For a = 0 To 255 Step 5
    Cls
    For i = 600 To 0 Step -1 '                      the sun
        FC3 400, horizon% + 50, i, midInk~&(255, 255, 0, 50, 50, 208, i / 600, 200)
    Next

    For i = horizon% To ymax '              the land
        Line (0, i)-(xmax, i), midInk~&(200, 200, 60, 45, 48, 0, (i - horizon%) / (ymax - horizon%), 255)
    Next
    For r = 400 To 331 Step -.25
        If r > 390 Then
            c~& = midInk~&(255, 0, 0, 255, 127, 0, 1 - ((r - 390) / 10), a)
        ElseIf r > 380 Then
            c~& = midInk~&(255, 127, 0, 255, 255, 0, 1 - ((r - 380) / 10), a)
        ElseIf r > 370 Then
            c~& = midInk~&(255, 255, 0, 0, 255, 0, 1 - ((r - 370) / 10), a)
        ElseIf r > 360 Then
            c~& = midInk~&(0, 255, 0, 0, 255, 255, 1 - ((r - 360) / 10), a)
        ElseIf r > 350 Then
            c~& = midInk~&(0, 255, 255, 0, 0, 255, 1 - ((r - 350) / 10), a)
        ElseIf r > 340 Then
            c~& = midInk~&(0, 0, 255, 75, 0, 230, 1 - ((r - 340) / 10), a)
        Else
            c~& = midInk~&(75, 0, 230, 248, 0, 211, 1 - ((r - 330) / 10), a)
        End If

        drawArc 400, horizon% + 50, r, _Pi, _Pi, c~&
    Next
    _Display
    ' _Limit 100
Next
Sleep

' 2025-05-03 Modified MidInk~& to control Alpha out put
' blend 2 colors according to fractional distance of 2nd to first color
Function midInk~& (r1%, g1%, b1%, r2%, g2%, b2%, fr##, A%)
    midInk~& = _RGB32(r1% + (r2% - r1%) * fr##, g1% + (g2% - g1%) * fr##, b1% + (b2% - b1%) * fr##, A%)
End Function

Sub FC3 (cx As Long, cy As Long, r As Long, clr~&) ' fill circle #3 mod
    Dim As Long r2, x, y ' for Option _Explicit
    If r < 1 Then Exit Sub
    Line (cx - r, cy)-(cx + r, cy), clr~&, BF
    r2 = r * r
    Do
        y = y + 1
        x = Sqr(r2 - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), clr~&, BF
        Line (cx - x, cy - y)-(cx + x, cy - y), clr~&, BF
    Loop Until y = r
End Sub

Sub drawArc (xc, yc, radius, rStart, rMeasure, colr As _Unsigned Long)
    ' xc, yc Center for arc circle
    ' rStart is the Radian Start Angle, use _D2R for conversion from Degrees to Radians
    ' rMeasure is the measure of Arc in Radain units, use _D2R for conversion from Degrees to Radians
    ' Arc will start at rStart and go clockwise around for rMeasure Radians

    Dim rEnd, stepper, a, x, y

    rEnd = rStart + rMeasure
    stepper = 1 / radius ' the bigger the radius the smaller  the steps
    For a = rStart To rEnd Step stepper
        x = xc + radius * Cos(a)
        y = yc + radius * Sin(a)
        If a > rStart Then Line -(x, y), colr Else PSet (x, y), colr
    Next
End Sub



Update:
At first I thought this was better than the Rainbow~&(fraction) coloring Function but now with Alpha setting added to maybe not better at all. Rainbow~&(fraction) coloring Function spreads color span very evenly OR I used a too dark a Green for MidInk~&() color Function.

Tweaking numbers and using less alpha, BTW this MidInk~&(fraction) coloring Function is also modified with an Alpha setting!

Code: (Select All)

_Title "Rainbow Test 2 Modified MidInk and ROY G BIV" ' b+ 2025-05-03 ROY G Cyan BIV with modified MidInk~&
Screen _NewImage(800, 600, 32)
_ScreenMove 250, 60
Const xmax = 800
Const ymax = 600

horizon% = Int(ymax * .6)
For a = 0 To 10 Step 5
    Cls
    For i = 600 To 0 Step -1 '                      the sun
        FC3 400, horizon% + 50, i, midInk~&(255, 255, 0, 50, 50, 208, i / 600, 200)
    Next

    For i = horizon% To ymax '              the land
        Line (0, i)-(xmax, i), midInk~&(200, 200, 60, 45, 48, 0, (i - horizon%) / (ymax - horizon%), 255)
    Next
    For r = 400 To 331 Step -.25
        If r > 390 Then
            c~& = midInk~&(255, 50, 50, 255, 127, 100, 1 - ((r - 390) / 10), a)
        ElseIf r > 380 Then
            c~& = midInk~&(255, 127, 100, 255, 255, 0, 1 - ((r - 380) / 10), a)
        ElseIf r > 370 Then
            c~& = midInk~&(255, 255, 0, 100, 255, 100, 1 - ((r - 370) / 10), a)
        ElseIf r > 360 Then
            c~& = midInk~&(100, 255, 100, 0, 255, 255, 1 - ((r - 360) / 10), a)
        ElseIf r > 350 Then
            c~& = midInk~&(0, 255, 255, 100, 100, 255, 1 - ((r - 350) / 10), a)
        ElseIf r > 340 Then
            c~& = midInk~&(100, 100, 255, 75, 0, 230, 1 - ((r - 340) / 10), a)
        Else
            c~& = midInk~&(75, 0, 230, 248, 0, 211, 1 - ((r - 330) / 10), a)
        End If

        drawArc 400, horizon% + 50, r, _Pi, _Pi, c~&
    Next
    _Display
    ' _Limit 100
Next
Sleep

' 2025-05-03 Modified MidInk~& to control Alpha out put
' blend 2 colors according to fractional distance of 2nd to first color
Function midInk~& (r1%, g1%, b1%, r2%, g2%, b2%, fr##, A%)
    midInk~& = _RGB32(r1% + (r2% - r1%) * fr##, g1% + (g2% - g1%) * fr##, b1% + (b2% - b1%) * fr##, A%)
End Function

Sub FC3 (cx As Long, cy As Long, r As Long, clr~&) ' fill circle #3 mod
    Dim As Long r2, x, y ' for Option _Explicit
    If r < 1 Then Exit Sub
    Line (cx - r, cy)-(cx + r, cy), clr~&, BF
    r2 = r * r
    Do
        y = y + 1
        x = Sqr(r2 - y * y)
        Line (cx - x, cy + y)-(cx + x, cy + y), clr~&, BF
        Line (cx - x, cy - y)-(cx + x, cy - y), clr~&, BF
    Loop Until y = r
End Sub

Sub drawArc (xc, yc, radius, rStart, rMeasure, colr As _Unsigned Long)
    ' xc, yc Center for arc circle
    ' rStart is the Radian Start Angle, use _D2R for conversion from Degrees to Radians
    ' rMeasure is the measure of Arc in Radain units, use _D2R for conversion from Degrees to Radians
    ' Arc will start at rStart and go clockwise around for rMeasure Radians

    Dim rEnd, stepper, a, x, y

    rEnd = rStart + rMeasure
    stepper = 1 / radius ' the bigger the radius the smaller  the steps
    For a = rStart To rEnd Step stepper
        x = xc + radius * Cos(a)
        y = yc + radius * Sin(a)
        If a > rStart Then Line -(x, y), colr Else PSet (x, y), colr
    Next
End Sub



Its very important to get your rainbows right
