ASCII AQUERIUM

[solo88]

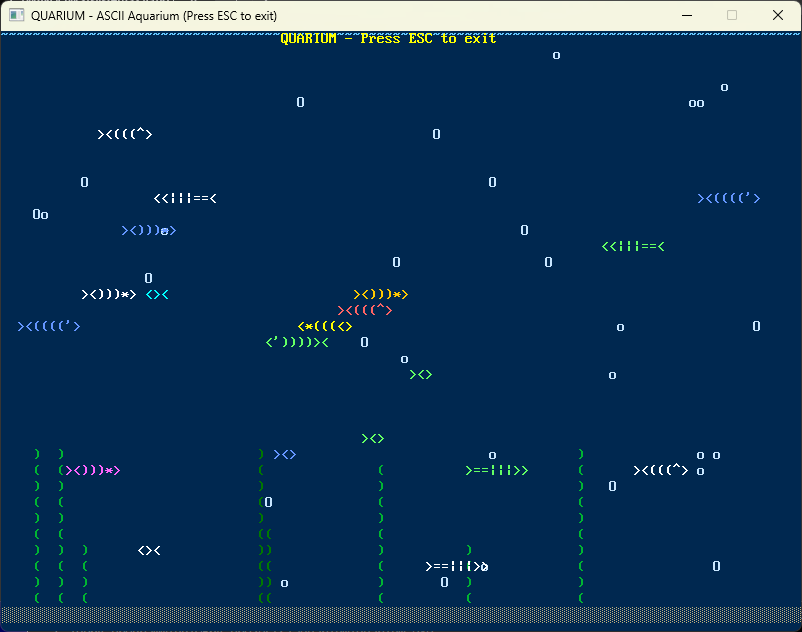

This one is for all the people who wanted to have an aquarium as a child but couldn't

Code: (Select All)

' QUARIUM - ASCII Aquarium for QB64PE

' Ported and enhanced from FreeBASIC version

' by ron77 2025

' Configuration constants

CONST SCREEN_WIDTH = 800

CONST SCREEN_HEIGHT = 600

CONST MAX_FISH = 20

CONST MAX_BUBBLES = 30

CONST MAX_SEAWEED = 8

' Fish structure using parallel arrays (QB64PE style)

DIM SHARED fishX(MAX_FISH) AS SINGLE

DIM SHARED fishY(MAX_FISH) AS SINGLE

DIM SHARED fishDX(MAX_FISH) AS SINGLE        ' horizontal speed

DIM SHARED fishDY(MAX_FISH) AS SINGLE        ' vertical speed

DIM SHARED fishShape(MAX_FISH) AS INTEGER    ' which shape to use

DIM SHARED fishColorIndex(MAX_FISH) AS INTEGER   ' color index

' Bubble structure

DIM SHARED bubbleX(MAX_BUBBLES) AS SINGLE

DIM SHARED bubbleY(MAX_BUBBLES) AS SINGLE

DIM SHARED bubbleSpeed(MAX_BUBBLES) AS SINGLE

' Seaweed positions

DIM SHARED seaweedX(MAX_SEAWEED) AS INTEGER

DIM SHARED seaweedHeight(MAX_SEAWEED) AS INTEGER

DIM SHARED seaweedColorIndex(MAX_SEAWEED) AS INTEGER

' Fish ASCII shapes (left-facing and right-facing)

DIM SHARED fishShapeRight(5) AS STRING

DIM SHARED fishShapeLeft(5) AS STRING

' Initialize fish shapes

fishShapeRight(0) = "><(((('>"

fishShapeRight(1) = "><>"

fishShapeRight(2) = "><)))*>"

fishShapeRight(3) = ">==|||>>"

fishShapeRight(4) = "><(((^>"

fishShapeLeft(0) = "<'))))><"

fishShapeLeft(1) = "<><"

fishShapeLeft(2) = "<*(((<>"

fishShapeLeft(3) = "<<|||==<"

fishShapeLeft(4) = "<^)))><"

' Screen setup - 32-bit graphics mode

DIM SHARED mainScreen AS LONG

mainScreen = _NEWIMAGE(SCREEN_WIDTH, SCREEN_HEIGHT, 32)

SCREEN mainScreen

_TITLE "QUARIUM - ASCII Aquarium (Press ESC to exit)"

' Calculate screen dimensions in characters (8x16 font)

DIM SHARED screenCols AS INTEGER, screenRows AS INTEGER

screenCols = SCREEN_WIDTH \ 8

screenRows = SCREEN_HEIGHT \ 16

' Color definitions using _RGB32

DIM SHARED colWater AS _UNSIGNED LONG

DIM SHARED colSurface AS _UNSIGNED LONG

DIM SHARED colSand AS _UNSIGNED LONG

DIM SHARED colBubble AS _UNSIGNED LONG

DIM SHARED colTitle AS _UNSIGNED LONG

DIM SHARED colSeaweedDark AS _UNSIGNED LONG

DIM SHARED colSeaweedLight AS _UNSIGNED LONG

colWater = _RGB32(0, 40, 80)           ' Dark blue water background

colSurface = _RGB32(100, 200, 255)     ' Light blue surface

colSand = _RGB32(194, 178, 128)        ' Sandy tan

colBubble = _RGB32(200, 230, 255)      ' Light bubble color

colTitle = _RGB32(255, 255, 0)         ' Yellow title

colSeaweedDark = _RGB32(0, 100, 0)     ' Dark green

colSeaweedLight = _RGB32(0, 180, 0)    ' Light green

' Fish colors array

DIM SHARED fishColors(10) AS _UNSIGNED LONG

fishColors(0) = _RGB32(255, 100, 100)   ' Light Red

fishColors(1) = _RGB32(255, 200, 0)     ' Orange/Gold

fishColors(2) = _RGB32(255, 255, 0)     ' Yellow

fishColors(3) = _RGB32(100, 255, 100)   ' Light Green

fishColors(4) = _RGB32(0, 255, 255)     ' Cyan

fishColors(5) = _RGB32(100, 150, 255)   ' Light Blue

fishColors(6) = _RGB32(255, 100, 255)   ' Magenta/Pink

fishColors(7) = _RGB32(255, 255, 255)   ' White

fishColors(8) = _RGB32(255, 150, 50)    ' Orange

fishColors(9) = _RGB32(150, 255, 200)   ' Aqua/Mint

' Seaweed colors

DIM SHARED seaweedColors(2) AS _UNSIGNED LONG

seaweedColors(0) = _RGB32(0, 120, 0)

seaweedColors(1) = _RGB32(0, 180, 50)

' Initialize random seed

RANDOMIZE TIMER

' Main program

CALL InitializeFish

CALL InitializeBubbles

CALL InitializeSeaweed

DIM k AS STRING

' Main loop

DO

    k = INKEY$



    ' Clear screen with blue water background

    CLS , colWater



    ' Draw everything

    CALL DrawTankDecorations

    CALL DrawBubbles

    CALL DrawFish

    CALL DrawTitle



    ' Update positions

    CALL UpdateFish

    CALL UpdateBubbles



    ' Display and limit frame rate

    _DISPLAY

    _LIMIT 30  ' 30 FPS



LOOP UNTIL k = CHR$(27)

' Cleanup

CLS , _RGB32(0, 0, 0)

COLOR _RGB32(255, 255, 255), _RGB32(0, 0, 0)

_PRINTSTRING (300, 280), "Thanks for watching the fish!"

_DISPLAY

_DELAY 2

SYSTEM

' Initialize all fish

SUB InitializeFish

    DIM i AS INTEGER

    FOR i = 0 TO MAX_FISH - 1

        fishX(i) = RND * (screenCols - 12) + 2

        fishY(i) = RND * (screenRows - 6) + 3

        fishDX(i) = (RND * 0.8 + 0.2) * (SGN(RND - 0.5) + (SGN(RND - 0.5) = 0) * 1)

        fishDY(i) = (RND * 0.3 - 0.15)

        fishShape(i) = INT(RND * 5)

        fishColorIndex(i) = INT(RND * 10)

    NEXT i

END SUB

' Initialize bubbles

SUB InitializeBubbles

    DIM i AS INTEGER

    FOR i = 0 TO MAX_BUBBLES - 1

        bubbleX(i) = RND * (screenCols - 2) + 1

        bubbleY(i) = RND * (screenRows - 4) + 2

        bubbleSpeed(i) = RND * 0.3 + 0.1

    NEXT i

END SUB

' Initialize seaweed

SUB InitializeSeaweed

    DIM i AS INTEGER

    FOR i = 0 TO MAX_SEAWEED - 1

        seaweedX(i) = INT(RND * (screenCols - 4)) + 2

        seaweedHeight(i) = INT(RND * 8) + 4

        seaweedColorIndex(i) = INT(RND * 2)

    NEXT i

END SUB

' Draw text at pixel position (helper)

SUB DrawText (row AS INTEGER, col AS INTEGER, txt AS STRING, fg AS _UNSIGNED LONG)

    DIM px AS INTEGER, py AS INTEGER

    px = (col - 1) * 8

    py = (row - 1) * 16

    COLOR fg, _RGBA32(0, 0, 0, 0)  ' Transparent background

    _PRINTSTRING (px, py), txt

END SUB

' Draw the tank decorations (sand, frame)

SUB DrawTankDecorations

    DIM i AS INTEGER



    ' Draw water surface wave

    FOR i = 1 TO screenCols

        DrawText 1, i, "~", colSurface

    NEXT i



    ' Draw sandy bottom

    FOR i = 1 TO screenCols

        DrawText screenRows, i, CHR$(176), colSand

    NEXT i



    ' Draw seaweed

    DIM j AS INTEGER, waveOffset AS INTEGER

    waveOffset = INT(TIMER * 2) MOD 2



    FOR i = 0 TO MAX_SEAWEED - 1

        DIM swCol AS _UNSIGNED LONG

        swCol = seaweedColors(seaweedColorIndex(i))



        FOR j = 0 TO seaweedHeight(i) - 1

            DIM seaweedChar AS STRING

            IF (j + waveOffset) MOD 2 = 0 THEN

                seaweedChar = "("

            ELSE

                seaweedChar = ")"

            END IF

            DIM swRow AS INTEGER

            swRow = screenRows - j - 1

            IF swRow > 1 AND seaweedX(i) >= 1 AND seaweedX(i) <= screenCols THEN

                DrawText swRow, seaweedX(i), seaweedChar, swCol

            END IF

        NEXT j

    NEXT i

END SUB

' Draw bubbles

SUB DrawBubbles

    DIM i AS INTEGER



    FOR i = 0 TO MAX_BUBBLES - 1

        DIM bx AS INTEGER, by AS INTEGER

        bx = INT(bubbleX(i))

        by = INT(bubbleY(i))

        IF by >= 2 AND by < screenRows AND bx >= 1 AND bx <= screenCols THEN

            DIM bubbleChar AS STRING

            IF RND > 0.5 THEN

                bubbleChar = "o"

            ELSE

                bubbleChar = "O"

            END IF

            DrawText by, bx, bubbleChar, colBubble

        END IF

    NEXT i

END SUB

' Update bubble positions

SUB UpdateBubbles

    DIM i AS INTEGER

    FOR i = 0 TO MAX_BUBBLES - 1

        bubbleY(i) = bubbleY(i) - bubbleSpeed(i)

        bubbleX(i) = bubbleX(i) + (RND * 0.4 - 0.2)  ' Slight wobble



        ' Reset bubble if it reaches the top

        IF bubbleY(i) < 2 THEN

            bubbleY(i) = screenRows - 1

            bubbleX(i) = RND * (screenCols - 2) + 1

            bubbleSpeed(i) = RND * 0.3 + 0.1

        END IF



        ' Keep X in bounds

        IF bubbleX(i) < 1 THEN bubbleX(i) = 1

        IF bubbleX(i) > screenCols THEN bubbleX(i) = screenCols

    NEXT i

END SUB

' Draw all fish

SUB DrawFish

    DIM i AS INTEGER



    FOR i = 0 TO MAX_FISH - 1

        DIM fx AS INTEGER, fy AS INTEGER

        fx = INT(fishX(i))

        fy = INT(fishY(i))



        ' Bounds check

        IF fy >= 2 AND fy < screenRows AND fx >= 1 AND fx <= screenCols - 8 THEN

            DIM fishStr AS STRING

            DIM fCol AS _UNSIGNED LONG

            fCol = fishColors(fishColorIndex(i))



            ' Choose direction based on movement

            IF fishDX(i) > 0 THEN

                fishStr = fishShapeRight(fishShape(i))

            ELSE

                fishStr = fishShapeLeft(fishShape(i))

            END IF



            DrawText fy, fx, fishStr, fCol

        END IF

    NEXT i

END SUB

' Update fish positions

SUB UpdateFish

    DIM i AS INTEGER



    FOR i = 0 TO MAX_FISH - 1

        ' Update position

        fishX(i) = fishX(i) + fishDX(i)

        fishY(i) = fishY(i) + fishDY(i)



        ' Occasionally change vertical direction slightly

        IF RND < 0.02 THEN

            fishDY(i) = (RND * 0.4 - 0.2)

        END IF



        ' Occasionally change speed slightly

        IF RND < 0.01 THEN

            DIM newSpeed AS SINGLE

            newSpeed = RND * 0.6 + 0.2

            fishDX(i) = newSpeed * SGN(fishDX(i))

        END IF



        ' Horizontal bounds - turn around at edges

        IF fishX(i) > screenCols - 9 THEN

            fishDX(i) = -ABS(fishDX(i))  ' Turn left

            fishX(i) = screenCols - 9

        ELSEIF fishX(i) < 1 THEN

            fishDX(i) = ABS(fishDX(i))   ' Turn right

            fishX(i) = 1

        END IF



        ' Vertical bounds

        IF fishY(i) > screenRows - 2 THEN

            fishDY(i) = -ABS(fishDY(i))

            fishY(i) = screenRows - 2

        ELSEIF fishY(i) < 2 THEN

            fishDY(i) = ABS(fishDY(i))

            fishY(i) = 2

        END IF

    NEXT i

END SUB

' Draw the title

SUB DrawTitle

    DIM titleText AS STRING

    titleText = " QUARIUM - Press ESC to exit "

    DIM titleX AS INTEGER

    titleX = (screenCols - LEN(titleText)) \ 2

    DrawText 1, titleX, titleText, colTitle

END SUB

My mom still has to this day, a full aquarium in her home... goldfish and all.

Cheers.

solo88 (ron77)

[Pete]

I had aquariums as a kid, but I grew up... which ended up in me having a 30 x 45 foot ham shaped koi pond. That was a real pain in the ASCII.

+2.  It reminded me of Mark's (bplus) post here: https://qb64phoenix.com/forum/showthread...61#pid1461

Pete

[a740g]

Hahaha. Nice. Love aquariums. We should have a dedicated thread for aquarium demos.

Here are some more that I saw in the past:

https://github.com/a740g/QB64-PE-Museum/...shTank.bas

https://github.com/a740g/QB64-PE-Museum/...s/kelp.bas

[Pete]

Count me out on this one, Sam. I made an amazing 3-D life like virtual aquarium back in the day, but I lost all my work when I tried to fill it up with water. Oh well, at least having water handy was invaluable for putting out the computer fire, and it wasn't a complete loss. Oh sure, the computer was burned beyond recognition, but on the bright side it was running Windows Vista.

Pete

[TempodiBasic]

@solo88
it is funny!
On my machine Acer a laptop with 4GB ram, 500GB HDD and Kubuntu 24.04 it works fine.
I must decrease the _LIMIT  value from 30 to 10 in the main loop!

[Unseen Machine]

One glimpse and i KNEW pete would LOVE it! He is the ASCII king!

[Pete]

Yes, and I had a bunch of aquariums as a kid, but the dogs kept jumping out. One day, someone said I should get fish. So I did, but they kept slipping out of the leashes.

Pete

[Dav]

Nice one, @solo88.  Runs fine on my laptop.  Fish aquarium demos are neat.

- Dav
